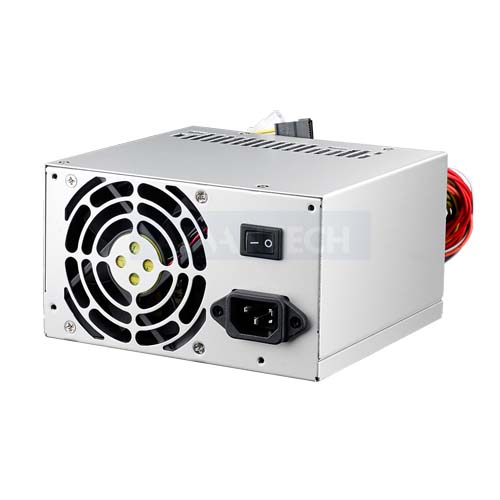

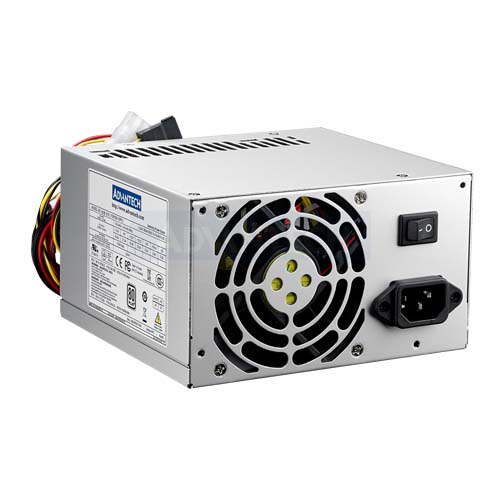

PS8-250ATX-ZE NEW POWER SUPPLY, 80+ Bronze PS/2 SPS 250W ATX (FSP) RoHS

POWER SUPPLY, 80+ Bronze PS/2 SPS 250W ATX (FSP) RoHS
  • POWER SUPPLY, 80+ Bronze PS/2 SPS 250W ATX (FSP) RoHS
  • POWER SUPPLY, 80+ Bronze PS/2 SPS 250W ATX (FSP) RoHS
  • POWER SUPPLY, 80+ Bronze PS/2 SPS 250W ATX (FSP) RoHS

  1. Wattage:250W
  2. Input Range : 100 ~ 240 VAC, 4 ~ 2 A
  3. Outputs : +3.3 V @ 20 A, +5 V @ 21 A, +12 V1 @ 16 A,+12 V2 @ 16 A, -12 V @ 0.3 A, -5 V @ 0.3 A, +5 Vsb @ 2.5 A
Certifications
CE
Resources
Resources Download
DatasheetDownloadExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€51.75

Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power Supply
Dimensions (D x W x H)
140 x 150 x 86 mm
Power Supply
Efficiency
82%
Power Supply
Form Factor
PS2
Power Supply
Input Current (maximum)
115V @6A
Power Supply
Input Frequency
47 ~ 63 Hz
Power Supply
Input Power
AC to DC
Power Supply
Input Voltage
100 ~ 240V
Power Supply
Manufacturer
FSP
Power Supply
Max Temperature
N/A
Power Supply
MTBF (hours @ 25°C)
100K
Power Supply
Operating Temperature
0 ~ 50°C
Power Supply
Output Power
250W
Power Supply
Output Rating
+3.3V @ 20A; +5V @ 21A; +12V1 @ 16A; +12V2 @ 16A; -12V @ 0.3A; -5V @ 0.3A; +5Vsb @ 2.5A;
Power Supply
Safety
CE / FCC / CUL / TUV / CB / CCC / KC / KC EMC
Power Supply
Storage Humidity
95% RH
Power Supply
Storage Temperature
-20 ~ 80°C
