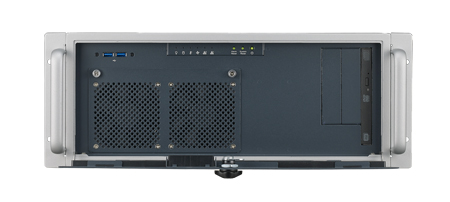

SYS-4U40204H-01 Intel 6th/7th generation Core i-Series Based PICMG 1.3 4U Rackmount with up to 10 PCIe Expansion Slots

ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B
  • ACP-4020BP-50B

  1. Intel® Xeon® E3-1200V5/6th/7th Gen Core™ i7/i5/i3 and Celeron processor
  2. Integrated with 8GB ECC SO-DIMM DDR4 memory, up to 32GB
  3. Support up to 1x PCIex8, 9x PCIex4
  4. Smart fan speed control for system fans
  5. 80 PLUS 500W Power Supply
Certifications
CE CE
Resources
  • Chassis
Please visit via PC to place order/quote

€2,004.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
Chassis : 4U Rackmount SBC Board & Backplane Chassis with 500W PSU
4U Rackmount SBC Board & Backplane Chassis with 500W PSU
[ +€0.00 ]
Power Cord (E) : Power Cord 90D 220V European 250V/6A
Power Cord 90D 220V European 250V/6A
[ +€0.00 ]
Power Cord 3P (UK) 5A-Fuse 1.8M
[ +€5.02 ]
None
[ -€-5.08 ]
Backplane Board : 14-slot PICMG 1.3 Half-size Backplane with one PCIex8, and eleven PCIex4 slots
14-slot PICMG 1.3 Half-size Backplane with one PCIex8, and eleven PCIex4 slots
[ +€0.00 ]
Single Board Computer : LGA 1151 Intel® Xeon® E3-1200V5/6th/7th Gen Core™ i7/i5/i3 Half-size SBC Board
LGA 1151 Intel® Xeon® E3-1200V5/6th/7th Gen Core™ i7/i5/i3 Half-size SBC Board
[ +€0.00 ]
CPU : Intel Dual Core Celeron G3900TE 2.3GHz

Note: 7th gen processor does not support Windows 7!

Intel Dual Core Celeron G3900TE 2.3GHz
[ +€0.00 ]
6th Gen Core i7-6700 3.4GHz 8M 1151P (65W)
[ +€282.82 ]
6th Gen Core i7-6700TE 2.4GHz 8M 1151P (35W)
[ +€301.34 ]
6th Gen Core i5-6500 3.2GHz 6M 1151P (65W)
[ +€172.90 ]
6th Gen Core i5-6500TE 2.3GHz 6M 1151P (35W)
[ +€172.90 ]
6th Gen Core i3-6100 3.7GHz 3M 1151P (65W)
[ +€83.99 ]
PENTIUM 3.3G 3M 1151P 2 CORE G4400
[ +€13.59 ]
XEON 3.3G 8M 1151P 4 CORE E3-1225V5
[ +€197.60 ]
XEON 3.6G 8M 1151P 4 CORE E3-1275V5
[ +€343.34 ]
7th Gen Core i5-7500 3.4GHz 6M 1151P (65W)
[ +€172.90 ]
7th Gen Core i5-7500T 2.7GHz 6M 1151P (35W)
[ +€172.90 ]
7th Gen Core i7-7700 3.6GHz 8M 1151P (65W)
[ +€301.34 ]
7th Gen Core i7-7700T 2.9GHz 8M 1151P (25W)
[ +€301.34 ]
CPU Cooler : CPU Cooler I-LGA1155 12V for 2U and 4U Chassis
CPU Cooler I-LGA1155 12V for 2U and 4U Chassis
[ +€0.00 ]
Memory : 8G ECC-SODDR4-3200 1.2V 1GbX8 SAM
8G ECC-SODDR4-3200 1.2V 1GbX8 SAM
[ +€0.00 ]
Hard Disk Drive (HDD) : 1x Serial-ATA 3.5" 1TB 7200RPM 256MB cache
1x Serial-ATA 3.5" 1TB 7200RPM 256MB cache
[ +€0.00 ]
1x Serial-ATA 3.5" 2TB 7KRPM 256MB cache
[ +€78.42 ]
Optical Disk Drive (ODD) : None
None
[ +€0.00 ]
Keyboard : None
None
[ +€0.00 ]
Mouse : None
None
[ +€0.00 ]
LOGITECH M100 MOUSE OPTICAL USB
[ +€16.51 ]
Rack Rail Slides : None
None
[ +€0.00 ]
968 ASSEMBLY, 2U or higher 26" slide rail (pair)
[ +€18.50 ]
Operating System (E) : None

Note: 7th gen processor does not support Windows 7!

None
[ +€0.00 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Value, For i5/i3/Pentium/Celeron CPU)
[ +€77.93 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (HighEnd, For i7/Xeon CPU)
[ +€138.07 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (General)
Standard Assembly, Functional Testing, SW installation (General)
[ +€0.00 ]
LCD Monitor : None
None
[ +€0.00 ]
6.5" VGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range
[ +€691.99 ]
12.1" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range
[ +€910.58 ]
15" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range
[ +€931.61 ]
15.6" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA/DVI or VGA/HDMI ports
[ +€1,175.01 ]
18.5" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA and DVI Ports
[ +€1,326.65 ]
21.5" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA and DVI Ports
[ +€1,500.10 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€25.05 ]
Extended Warranty for 6 Months
[ +€50.10 ]
Extended Warranty for 12 Months
[ +€120.24 ]
Extended Warranty for 24 Months
[ +€200.40 ]
Extended Warranty for 36 Months
[ +€300.60 ]

Comment

Specifications
Category
Attribute
Value
RAID
RAID
N/A
RAID Card
RAID Card
Onboard
System
System
4th Gen Intel Core i-Series Based PICMG 1.3 4U Rackmount Server with up to 11 PCI/PCIe Expansion Slots
Chipset
Chipset
Intel® H81
Processor
Processor
Intel® 4th Gen Core™ i-Series
FSB
FSB
N/A
Memory
Memory
SO-DIMM DDR3 1333/1600MHz
Optical Drive
Optical Drive
Slim DVD-RW
HDD
HDD
1 x 500G 3.5" SATA HDD
AGP
AGP
None
ISA
ISA
None
PCI
PCI
8
PCI Express
PCI Express
1 x (x16)
2 x (x1)
LAN Interface
LAN Interface
Dual 10/100/1000Base-T Gigabit Ethernet
Front I/O Ports
Front I/O Ports
2 x USB 3.0
Rear I/O Ports
Rear I/O Ports
1 x USB 2.0
2 x RJ-45
1 x VGA
1 x PS/2
Power Wattage
Power Wattage
300 Watt
Power Type
Power Type
Single ATX/PFC Auto-Switching
Chassis Fan
Chassis Fan
1 (85 CFM)
Temperature
Temperature
Operating 0~40°C (32°F~104°F)
Non-Operating -20~60°C (-4°F~140°F)
Slim bay
Slim bay
1
Dimensions (W x H x D)
Dimensions (W x H x D)
482 x 177 x 348 mm
(19" x 7" x 13.7")
5.25" bay
5.25" bay
None
OS (Optional)
OS (Optional)
Windows® 7
Windows® 8
3.5" (front-accessible)
3.5" (front-accessible)
2
3.5" mobile bay
3.5" mobile bay
2
3.5" (internal)
3.5" (internal)
None
3.5" bay
3.5" bay
1
LAN Controller
LAN Controller
LAN 1:Intel® 82578DM
LAN 2:Intel® 82583V
