Home Rackmount Systems SKY Industrial Server & Storage Solutions Rackmount Server Chassis

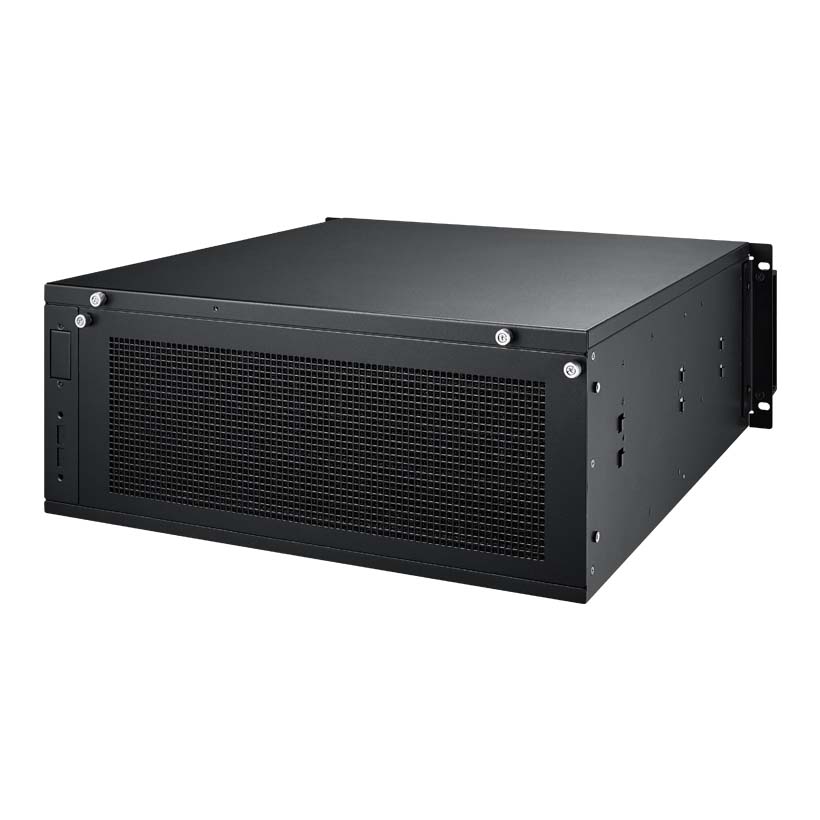

HPC-7420-12ZX 4U Chassis for E-EATX,EATX,1+0 1200W RP

4U Chassis for E-EATX,EATX,1+0 1200W RP
  • 4U Chassis for E-EATX,EATX,1+0 1200W RP
  • 4U Chassis for E-EATX,EATX,1+0 1200W RP

  1. Short depth 4U rackmount chassis support EE-ATX/EATX/ATX server board
  2. Industry-grade chassis with front access feature
  3. 11 PCIe expansion slots support
  4. Wide environment temp support, 0 ~ 50 °C
  5. 2 hot-swappable 2.5" SATA/SAS/SSD drive bays with slim/ultra slim ODD in option
  6. Rear-accessible system fan without opening top cover for easy maintenance
  7. Fan filter included for harsh environment need
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote
Limited availability

€846.39

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Form Factor
Board
EEATX/EATX/ATX MB
Power Supply
Power Supply
1200 (1+0 non-redundancy)
Miscellaneous
LED Indicators
Power, HDD, LAN1, LAN2, System Information
Miscellaneous
Rear Panel
Two USB reserved ports
Expansion Slot
FHFL PCIe
Up to 11
Cooling
Air Filter
Yes
Cooling
Fan
3 (12cm/238CFM)
Certification
EMC
CE/FCC
Disk Drive Bay
Slim/Ultra Slim ODD
1
Disk Drive Bay
2.5" Front-Accessible
2 (option)
Disk Drive Bay
3.5" Internal
2 (1 can to 2.5" HDD bracket)
Environment
Non-operating Humidity
10 ~ 95% @ 70°C, non-condensing
Environment
Non-operating Temperature
-40 ~ 70 °C (-40 ~ 156 °F)
Environment
Non-Operating Vibration (5 ~ 500 Hz)
2 Grms
Environment
Operating Humidity
10 ~ 95% @ 50°C, non-condensing
Environment
Operating Shock
10 G (with 11 ms duration, half sine wave)
Environment
Operating Temperature
0 ~ 50°C (with wide-temp peripherals)
Environment
Operating Vibration (5 ~ 500 Hz)
0.3 Grms
Physical Characteristics
Dimensions (W x H x D)
438 x 177 x 450 mm ( 17.24" x 6.97" x 17.7")
Physical Characteristics
Weight
16 kg
