EMBEDDED SOLUTIONS FOR ROBOTICS

Fast, Reliable, Efficient Embedded solutions for Automation and Robotics design


•

Robotic automation provides an incredible opportunity to accelerate and streamline production. The future of smart robotics is a new business model that is the future of manufacturing. Some areas where robotics has quickly transformed the factory floor includes process automation, controls, energy and facility management.



Why Advantech Embedded Solutions for Robotics?
• Full range product offering from 2.5” Pico-ITX to 3.5” SBCs
• Rugged solutions: -40~85°C extreme operating temperature support & vibration resistance
• Supports innovative expansion MI/O interface
• Supports iManager & embedded API (Optional)
• Advantech WISE-PaaS IoT software built-in



Unique Design Features


SOFTWARE AND UTILITIES SUPPORT

All Advantech embedded solutions support software APIs and utilities to monitor and maintain at the board level.

GPIO
GPIO
Hardware Monitor
Hardware Monitor
Brightness Control
Watch Dog
Watch Dog
SMBus
SMBus
Backlight On/Off
Backlight On/off

HIGH PERFORMANCE PROCESSOR

Advantech embedded solutions are built with the latest Intel® processors and can run multiple industrial ethernet protocols like PROFINET, POWERLINK, EtherCAT, SERCOS, EtherNet/IP and other proprietary communication protocols.

IoT Solutions Alliance

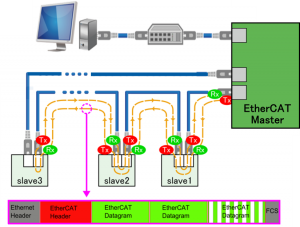

EtherCAT FOR ROBOTIC AUTOMATION

EtherCAT is a popular industrial standard for robotics and motion control systems because of its high-precision, performance throughput, open structure, ease of integration and cost-effective features. EtherCAT is highly suited for robotics requirements that require flexibility, adaptability, highly synchronized I/O, and time-deterministic control.

Triple gigabit ethernet is the general requirement for robotics automation – one gigabit ethernet can be used for EtherCAT, another for the tech pendant of the robot controller, and the other can be for general purpose use.



Ethercat diagram


2.5" Pico-ITX Single Board Computers

MIO-2360 Series
MIO-2360 SERIES
• Intel® Pentium N4200/Celeron N3350/Atom™ E3940/ Atom™ E3930 processor, DDR3L 1866MHz support up to 8BG
• Dual independent display by 24-bit LVDS+VGA/HDMI
• Rich I/O interface with 2 x COM, 1 x SATA, USB 3.0, PCIe Mini Card and mSATA



Learn More
MIO-2270 Series
MIO-2270 SERIES
• AMD® G-Series SoC GX-415GA/ GX-210JA processor, DDR3/ DDR3L 1600MHz support up to 8GB
• Dual independent display by 18-bit LVDS + VGA or 18-bit LVDS + HDMI
• Rich I/O interface with 2 x COM, 1 x SATA, USB 3.0, PCIe Mini Card and mSATA



Learn More
MIO-3260 Series
MIO-3260 SERIES
• Intel® Atom™ E3825 & Celeron® N2930 up to Quad-Core processor, DDR3L 1333MHz support up to 8GB
• Dual independent display by 18/24bit LVDS, VGA, DP/HDMI
• Rich I/O interface with 2 x COM, 1 x SATA, 4 x USB 2.0, GPIO,SMBus, I2C, and MIOe



Learn More

3.5" COMPACT Single Board Computers

MIO-5350 Series
MIO-5350 SERIES
• Intel® Pentium N4200 & Celeron N3350, Atom™ E3950, E3940, E3930,DDR3L 1867 MHz, up to 8GB
• Triple display: VGA+LVDS/eDP+HDMI/DP*
• Rich I/O interface with 4x COM, 2 x SATA, 2 x USB 3.0, SMBus/I2C, GPIO, full-size Mini PCIe, full-size mSATA



Learn More
MIO-5272 Series
MIO-5272 SERIES
• 7th & 6th Gen Intel® Core™ U-series (i7/i5/i3/Celeron®*)
• Dual independent display by VGA/HDMI
• Rich I/O interface and expansion with MIOe expansion modules






Learn More
PCM-9365 Series
PCM-9365 SERIES
• Intel® Atom™ E3825 & Celeron® N2930 up to Quad-Core processor, DDR3L 1333MHz support up to 8GB
• Dual independent display by 18/24bit LVDS, VGA, DP/HDMI
• Rich I/O interface with 2 x COM, 1 x SATA, 4 x USB 2.0, GPIO,SMBus, I2C, and MIOe



Learn More


Industrial Motherboards

Mini ITX Motherboards

Highly integrated Mini-ITX embedded motherboards feature the most popular low wattage processors and I/O. Ideal for fast-emerging markets.

Learn More
MicroATX Motherboards

Ideal for space/cost sensitive applications. With similar integration to ATX, the smaller footprint balances performance and expandability.

Learn More
ATX INDUSTRIAL MOTHERBOARDS

ATX motherboards offer the latest multi-core processors, designed using the most rugged components with long lifecycle designs.

Learn More
