Home SRP & IoT Gateways IoT Gateways & Devices IoT Wireless I/O

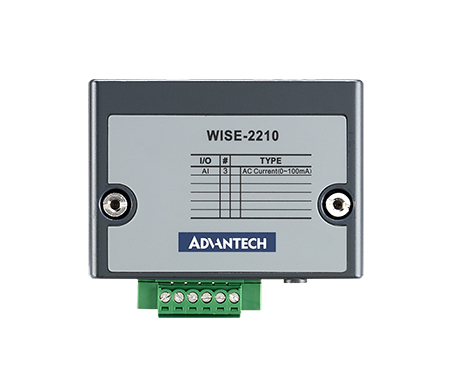

WISE-2210-NA LPWAN Self powered Sensor module(for CT)

LPWAN Self powered Sensor module(for CT)
  • LPWAN Self powered Sensor module(for CT)
  • LPWAN Self powered Sensor module(for CT)

  1. Proprietary LPWAN (Sub-G) Wireless technology
  2. Self-powered design, no power wired installation needed
  3. High efficiency power charger design via CT (Current transformer, AC 0~100mA)
  4. Max. 3 AI channels for CT node
  5. Less interference with high penetration rate
  6. Power measurement in seconds
  7. Plug and play
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownload3D ModelExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€176.07

2 years extended warranty
Make an inquiry Add to Quote Add to Cart
Features

WISE-2210 & 2211

Smart Plug and Play Facility Monitoring I/O Module

WISE-221X is using reliable LPWAN (Sub-G) wireless solution, it has better wireless transmission capability, and provides a cost-effective private network environment for users. WISE-221X both have 3 analog input channels for facility monitoring applications. WISE-2210 is using for facility 3-phase power current detection. WISE-2211 is using for 4-20mA sensor connections for different kinds of facility monitoring applications.

Feature Highlights

High Reliable LPWAN (Sub-G) Wireless Technology

It not only provides a wide wireless coverage and anti-interference environment, but also provides an independent wireless sensing network structure.

Plug and Play Design

  • Self-powered using ultra-low energy from the measured conductor which no needs for batteries or wiring.
  • The small and 3 channels plug and play design with non-stop machinery installation procedure.

Upgrade Legacy Equipment through Cloud Management

WISE-2210 is using for facility 3-phase power current detection. Not like traditional power meter need a lengthy installation procedure. WISE-2210 can be powered by CT connection, no line power wiring needed.

Facility Circuit Breaker

  • Remote Facility Status & Performance monitoring
  • Current balance detection
  • Energy waste calculation

WISE-2211 is using for 4-20mA sensor connections for leakage, flow and container level detection application with valves and meters connection.

Pipeline Network

  • Remote 4~20mA sensing data collection
  • Liquid/Energy waste calculation

System Architecture

Product Specifications

Dimensions

Unit: mm
WISE-2210 & 2211

Mounting

Wall Mount

Pole Mount

DIN-Rail Mount

Inside the Box

WISE-2210 & 2211
Specifications
Category
Attribute
Value
Analog Input
Channels
3
Analog Input
Input Range
0~100 mA
Analog Input
Resolution(Bits)
11-bit
Hardware
Certification
CE, FCC Class A, NCC, TELEC
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Environment
Relative Humidity
5~95% RH (non-condensing)
Environment
Storage Humidity
0~95% RH (non-condensing)
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Mechanical
Dimension (W x H x D)
71 x 52 x 30 mm
Mechanical
Mounting
DIN-rail, Wall, Pole
Wireless Communication
Frequency Band
NA 920.80~924.40 (MHz), EU 865.20~868.80 (MHz)
Wireless Communication
Standard(Technology)
Proprietary LPWAN
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
1750008836-01 Dipole Ant. 863-870MHz 2.02 SMA/M-R RG178 GRY BT €5.99
Part No. Qty
1750008836-01
Dipole Ant. 863-870MHz 2.02 SMA/M-R RG178 GRY BT
Unit Price: €5.99
