Home SRP & IoT Gateways IoT Gateways & Devices IoT Wireless I/O

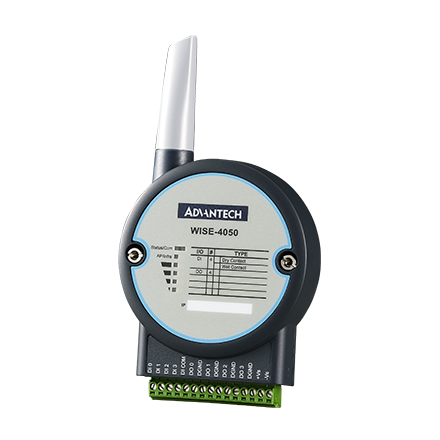

WISE-4050-B 4-ch DI and 4-ch DO IoT Wireless I/O Module

4-ch DI and 4-ch DO IoT Wireless I/O Module
  • 4-ch DI and 4-ch DO IoT Wireless I/O Module
  • 4-ch DI and 4-ch DO IoT Wireless I/O Module
  • 4-ch DI and 4-ch DO IoT Wireless I/O Module

  1. WiFi 2.4GHz IEEE 802.11b/g/n WLAN
  2. Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  3. Supports file-based cloud storage and local logging with RTC time stamp
  4. Supports RESTful web API in JSON format for IoT integration
  5. Configured by mobile devices directly without installing software or App
Certifications
CE CE CE CE CE CE CE CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManualUtilities3D ModelExtended Specifications
Please visit via PC to place order/quote
Available for delivery

€132.19

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
General
Connectors
1 x Plug-in screw terminal
General
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
Hardware
Certification
CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC, ANATEL
Hardware
LED Indicators
Status, Com, AP/Station, Signal Strength
Hardware
Power Consumption
2.2 W @ 24 VDC
Hardware
Power Input
10~30 VDC
Hardware
Watchdog Timer
1.6 s
Digital Input
Channels
4 (TTL)
Digital Input
Input Voltage
Dry Contact Logic level 0: Open Logic level 1: Close to DI COM Wet Contact Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC
Digital Input
Isolation Protection
4,200 VDC
Digital Output
Channels
4 (TTL)
Digital Output
Isolation Protection
4,200 VDC
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Environment
Relative Humidity
20~95% RH (non-condensing)
Environment
Storage Humidity
0~95% RH (non-condensing)
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Power Requirements
Input Voltage
10~30 VDC
Mechanical
Dimension (W x H x D)
80 x 148 x 25 mm
Mechanical
Enclosure
PC
Mechanical
Mounting
DIN-rail, Wall, Stack
Mechanical
Weight (Net)
0.15 kg
Wireless Communication
Frequency Band
IEEE 802.11 b/g/n 2.4 (GHz)
Wireless Communication
Standard (Technology)
WIFI
