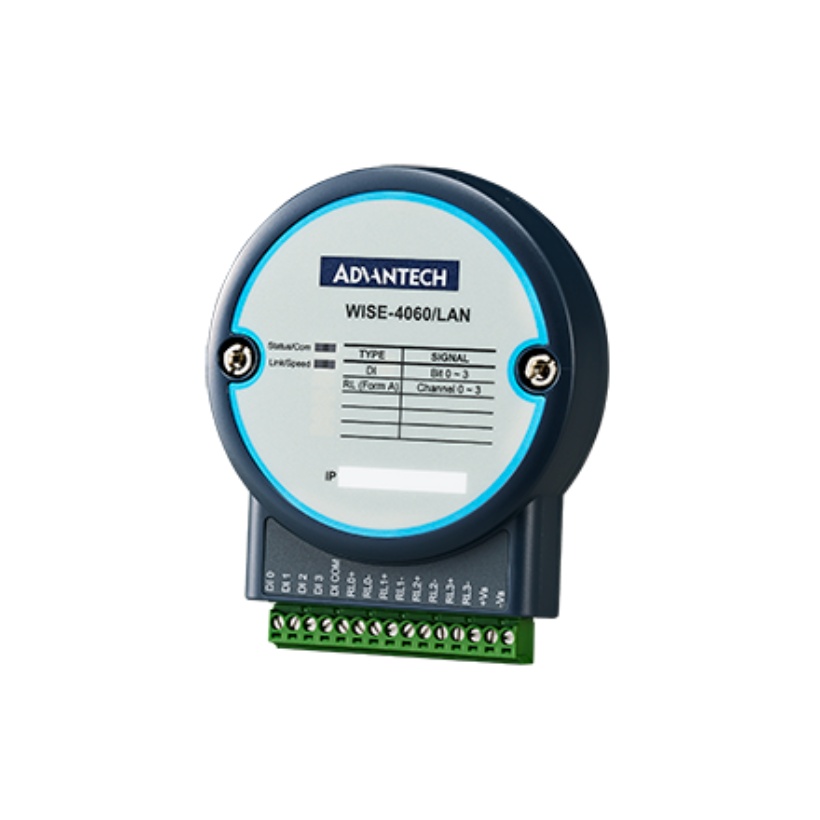

WISE-4060LAN-B 4-ch DI and 4-ch Relay IoT Ethernet I/O Module

4-ch DI and 4-ch Relay IoT Ethernet I/O Module
  • 4-ch DI and 4-ch Relay IoT Ethernet I/O Module
  • 4-ch DI and 4-ch Relay IoT Ethernet I/O Module
  • 4-ch DI and 4-ch Relay IoT Ethernet I/O Module

  1. Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  2. Supports RESTful web API in JSON format
  3. Supports local logging with RTC time stamp
  4. Supports mobile device web configuration in HTML5
  5. Supports 10~30 VDC power with reverse protection
Certifications
CE CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote
Available for delivery

€153.38

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
General
Connectors
1 x RJ45, 1 x 15-pin plug-in screw terminal
General
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Communications
Interface
Ethernet
Isolated Digital Input
Channels
4
Isolated Digital Input
Input Voltage
Dry Contact Logic level 1: close to DI COM Logic level 0: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Input
Isolation Protection
3000 Vrms
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Environment
Storage Humidity
0~95% RH (non-condensing)
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Relay Output
Channels
4
Relay Output
Contact Rating (Resistive)
3 A @ 30 VDC, 5 A @ 250 VAC
Relay Output
Relay Type
1 x Form A
Power Requirements
Input Voltage
10~30 VDC
