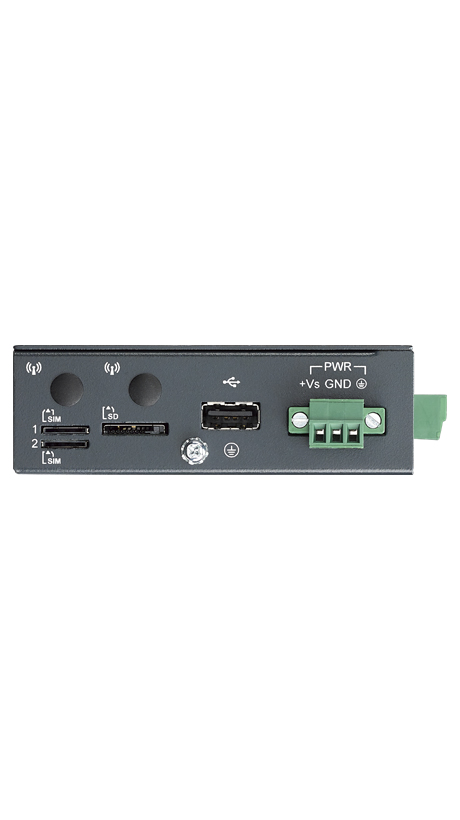

ECU-1051TL-R10AAE A8 600MHz,2xLAN,2xCOM,Dual SIM slots w/EdgeLink

  1. TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
  2. Support web service for remotely on-line monitoring
  3. Firmware update by SD card and online update
  4. Data logger on SD card
  5. Support dual SIM slots for communication redundant
  6. Support MQTT Client for cloud communication
  7. Wide Operating temperature: -40 ~ 70°C
Please visit via PC to place order/quote
Contact us for stock info

€199.28

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Grounding Protection
Chassis grounding
General
Programming Language
Linux C
General
Protocol
OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
Hardware
Certification
CE, FCC class A
Hardware
CPU
TI Cortex A8, 600MHz
Hardware
Expansion
1 x Full-size mPCIe slot
Hardware
LED Indicators
PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
Hardware
Memory
DDR3L 256MB
Hardware
OS Support
Linux
Hardware
Power Input
10~30 VDC
Hardware
Storage
1 x 512MB NAND Flash
Hardware
Watchdog Timer
15~255 s
Ethernet
Speed
10/100 Mbps
Serial Communication
Baud Rate (bps)
50 bps~115.2 kbps
Serial Communication
Data Signals
RS-232: TxD, RxD, GND RS-485: Data+, Data-
I/O Interface
Expansion
1 x Full-size mPCIe Slot
I/O Interface
LAN Ports
2 x 10/100 Mbps
I/O Interface
Power Connector
1 x 3-Pin Terminal Block
I/O Interface
Serial Ports
2 x RS-232/485 (Terminal Block)
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Environment
Relative Humidity
5~95% RH (non-condensing)
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Expansion Function
Interface
1 x Full-size mini PCIe 2.0
Expansion Function
SIM card slot
Nano SIM card
Power Requirements
Input Voltage
10~30 VDC
Mechanical
Dimension (W x H x D)
92 x 30 x 93 mm
Mechanical
Enclosure
SECC
Mechanical
Form Factor
Passive Cooling and Front Accessible
Mechanical
Mounting
Wall, DIN-rail
Wireless Communication
Standard(Technology)
WIFI, LTE
