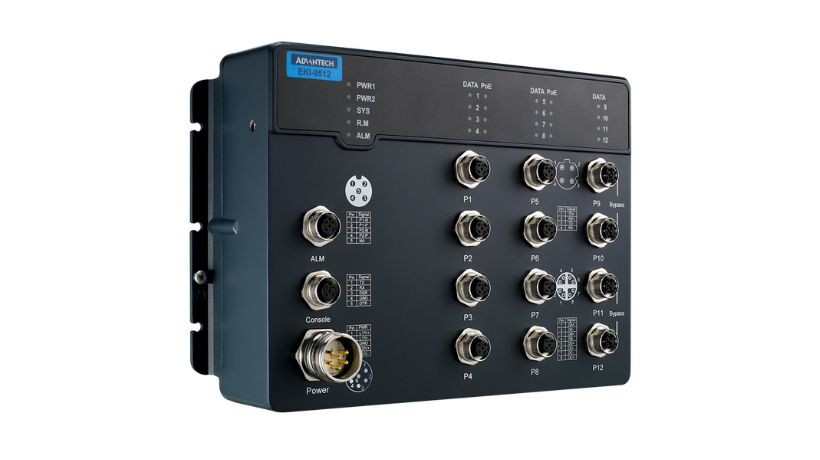

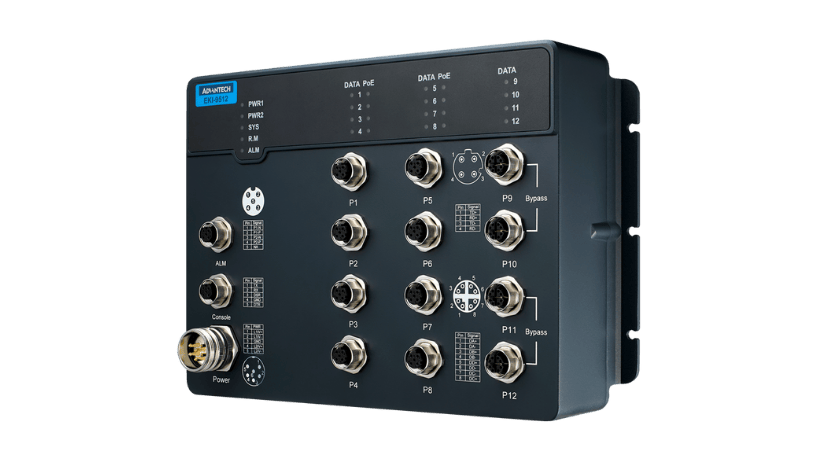

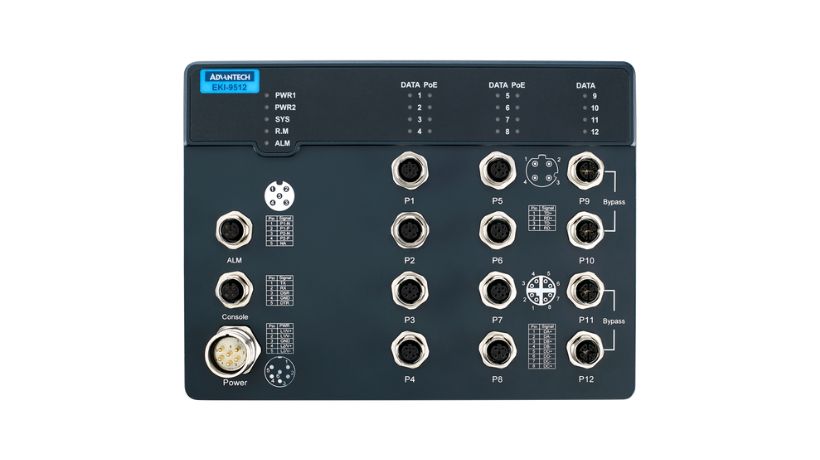

EKI-9512E-4GMPW-AE 8FE PoE + 4GE BP train switch

  1. M12 connector with IP67 rugged housing
  2. Complies with EN50155 & EN50121-3-2
  3. Up to 8 PoE ports which support IEEE802.3af/at
  4. Wide nominal power input range: 24~110VDC
  5. Operating power input range: 16.8~137.5VDC
  6. Supports X-Ring Pro for rapid and predictable convergence
  7. Supports IXM for fast and easy maintenance
  8. Supports N-Key for quick configuration and backup
  9. Operating temperature: -40 ~ 75°C
Certifications
EN50155 5年保固(90X60)
Please visit via PC to place order/quote
Limited availability

€3,119.71

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
Power
Power Connector Type
M23
Power
Power Consumption
17W (system)
Power
Power Input (DC)
24/ 28/ 36/ 48/ 72 / 96 / 110 VDC
Power
Power Operating Current
0.15A @ 110VDC (system)
Power
Power Operating Voltage
16.8 ~ 137.5 VDC
Power
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Relative Humidity
5~95%
Environment
Temperature (Operating Range)
-40 ~ 75°C (-40 ~ 167°F)
Environment
Temperature (Storage Range)
-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
254 x 174 x 64.5 mm
Mechanism
Enclosure (Metal)
Aluminum die-casting
Mechanism
IP Rating
IP67
Mechanism
Mounting (Wall)
Yes
Mechanism
Weight
3.7 kg
Ethernet Communication
Bypass Function (Pair)
2
Ethernet Communication
M12 D-code (10/100Base-T) Number
8
Ethernet Communication
M12 X-code (10/100/1000Base-T) Number
4
Switch Properties
Jumbo Frame
9,216 bytes
Switch Properties
MAC Table Size
8K
Switch Properties
Packet Buffer Size
4.1M bit
Switch Properties
Switch Fabric Speed
9.6Gbps
Certification
EMC
CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
Certification
EMI
CISPR 32, FCC Part 15 Subpart B Class A
Certification
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Certification
Freefall
IEC 60068-2-31
Certification
Shock
IEC 61373
Certification
Vertical Market
EN50155, EN50121-3-2, EN61000-6-2
Certification
Vibration
IEC 61373
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
Up to 150W
PoE Information
PoE Port Number
8
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
1990023703S000 Waterproof Cap M12 Female Conn NY-WP060 €0.95
OPT1-M12C-4MD-150R M12 D-4pin Male to RJ45 1.5m €22.64
OPT1-M12C-5MA-DB9 M12 A-5pin Male to DB9 console cable 1.5m €100.08
OPT1-M12C-8MX-150R M12 X-8pin Male to RJ45 1.5m €43.43
OPT1-M12-CRP-4MD M12 D-4pin Male (Ethernet port), PXC 1411066 €33.05
OPT1-M12-CRP-5MA M12 A-5pin Male (for console), PXC1413991 €34.94
OPT1-M12-CRP-8MX M12 X-8pin Male (Ethernet port), PXC1411043 €60.44
OPT1-M23C-6FH-100 M23 Female harting power cable 1m €113.28
Part No. Qty
1990023703S000
Waterproof Cap M12 Female Conn NY-WP060
Unit Price: €0.95
OPT1-M12C-4MD-150R
M12 D-4pin Male to RJ45 1.5m
Unit Price: €22.64
OPT1-M12C-5MA-DB9
M12 A-5pin Male to DB9 console cable 1.5m
Unit Price: €100.08
OPT1-M12C-8MX-150R
M12 X-8pin Male to RJ45 1.5m
Unit Price: €43.43
OPT1-M12-CRP-4MD
M12 D-4pin Male (Ethernet port), PXC 1411066
Unit Price: €33.05
OPT1-M12-CRP-5MA
M12 A-5pin Male (for console), PXC1413991
Unit Price: €34.94
OPT1-M12-CRP-8MX
M12 X-8pin Male (Ethernet port), PXC1411043
Unit Price: €60.44
OPT1-M23C-6FH-100
M23 Female harting power cable 1m
Unit Price: €113.28
