Order By Part Number

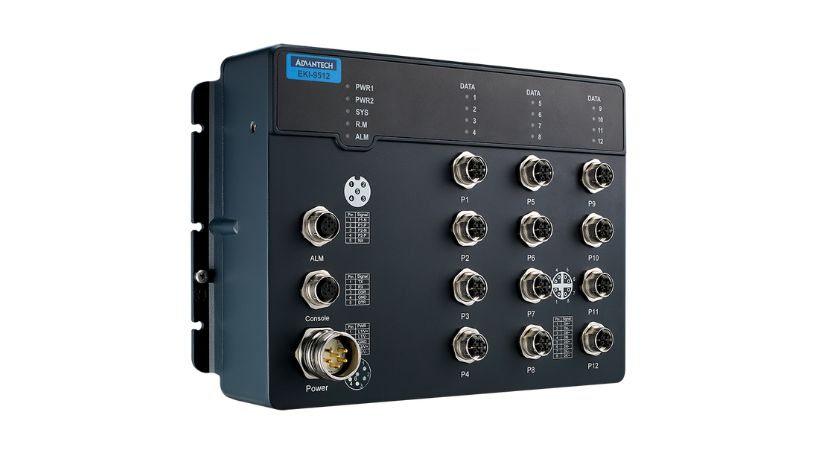

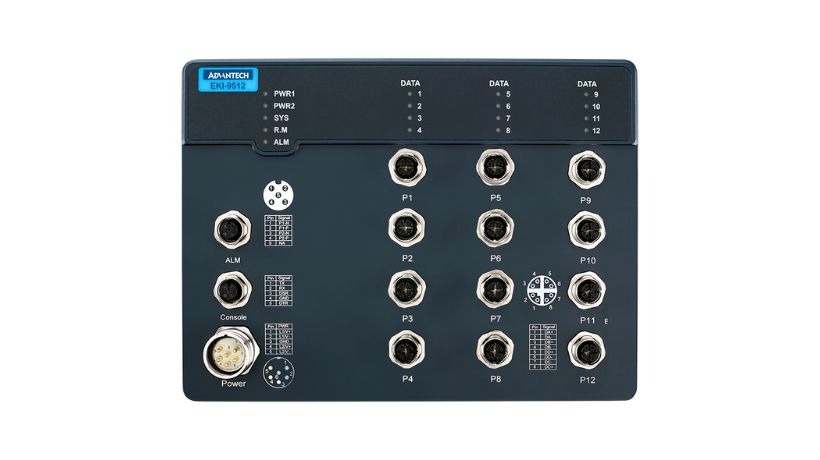

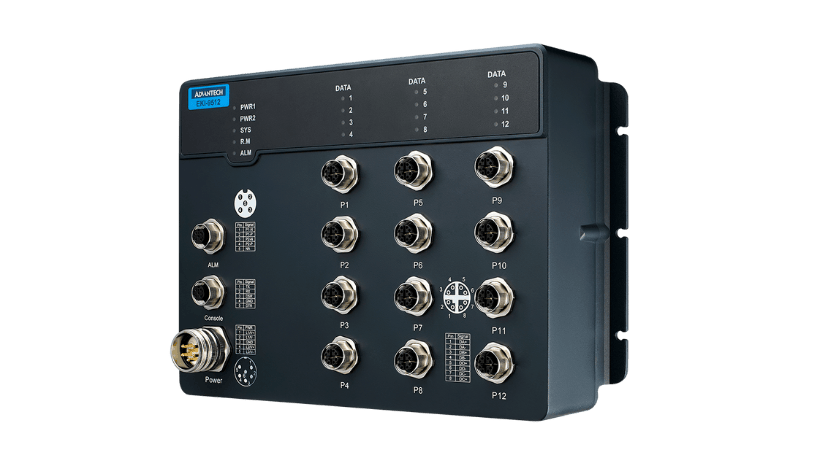

EKI-9512G-4GMX-AE NEW 12GE w/o BP train switch

  1. M12 connector with IP67 rugged housing
  2. Complies with EN50155 & EN50121-3-2
  3. Up to 8 PoE ports which support IEEE802.3af/at
  4. Wide nominal power input range: 24~110VDC
  5. Operating power input range: 16.8~137.5VDC
  6. Supports X-Ring Pro for rapid and predictable convergence
  7. Supports IXM for fast and easy maintenance
  8. Supports N-Key for quick configuration and backup
  9. Operating temperature: -40 ~ 75°C
Certifications
EN50155 5年保固(90X60)
Please visit via PC to place order/quote

€2,159.78

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
Power
Power Connector Type
M23
Power
Power Consumption
17W (system)
Power
Power Input (DC)
Dual 24~110VDC
Power
Power Operating Current
0.15A @ 110VDC (system)
Power
Power Operating Voltage
16.8~137.5 VDC
Protection
Reverse Polarity
Present
Environment
Relative Humidity
5 ~ 95%
Environment
Temperature (Operating Range)
-40 ~ 75°C (-40 ~ 167°F)
Environment
Temperature (Storage Range)
- 40 ~ 85° C (-40 ~185° F)
Mechanism
Dimensions (W x H x D)
254 x 174 x 64.5 mm
Mechanism
Enclosure (Aluminum die-casting)
Aluminum die-casting
Mechanism
IP Rating
IP67
Mechanism
Mounting (Wall)
Wall
Mechanism
Weight
3.7kg
Ethernet Communication
Ethernet Standard
802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad
Switch Properties
Jumbo Frame
9,216 bytes
Switch Properties
MAC Table Size
8K
Switch Properties
Packet Buffer Size
1.5MB
Switch Properties
Switch Fabric Speed
24Gbps
Certification
EMI
CE, FCC Class A
Certification
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
* Port Configuration
Description
12 x M12 X-Coded 10/100/1000Mbps ports
* Port Configuration
Total Port Number
12
Warranty
Warranty Period
5 years
Product Category
Railway Switch
Yes
PoE Information
PoE Budget
-
PoE Information
PoE Port Number
-
x
