Home Transportation Applications Rolling Stock Controllers

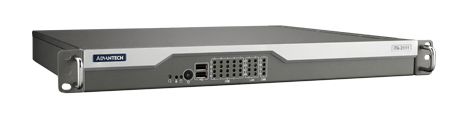

ITA-2111-3S51 Intel® Atom™ E3845 1U Fanless System; EN 50121-4 Compliant for Railway Applications.

ITA-2111-00A1E
  • ITA-2111-00A1E
  • ITA-2111-00A1E
  • ITA-2111-00A1E
  • ITA-2111-00A1E
  • ITA-2111-00A1E
  • ITA-2111-00A1E
  • ITA-2111-00A1E

  1. Built with Intel® Atom™ E3845 Processor
  2. Built with 4GB DDR3 memory
  3. Supports 2 x Gigabit Ethernet, 4 x USB 2.0, 1x USB 3.0, 2x COM, 1x VGA, 1x DVI-D Ports
Certifications
CE CE CE CE
Resources
  • Base System
Please visit via PC to place order/quote

€1,931.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
Base System : Intel® Atom™ E3845 1U Fanless System; EN 50121-4 Compliant for Railway Applications
Intel® Atom™ E3845 1U Fanless System; EN 50121-4 Compliant for Railway Applications
[ +€0.00 ]
Power Cord (E) : Power Cord 90D 220V European 250V/6A
Power Cord 90D 220V European 250V/6A
[ +€0.00 ]
Power Cord 3P (UK) 5A-Fuse 1.8M
[ +€3.91 ]
None
[ -€-5.59 ]
CPU : Intel® Atom™ E3845 1.91GHz Processor Built-In
Intel® Atom™ E3845 1.91GHz Processor Built-In
[ +€0.00 ]
Memory : 4GB DDR3 Memory Built-In
4GB DDR3 Memory Built-In
[ +€0.00 ]
Hard Disk Drive or Solid State Drive : 1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ +€0.00 ]
2x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ +€40.00 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +€23.29 ]
2x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +€86.58 ]
256GB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€195.18 ]
2x 256GB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€430.36 ]
512GB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€400.52 ]
2x 512GB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€841.04 ]
1TB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€817.30 ]
2x 1TB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€1,674.60 ]
Operating System (E) : None
None
[ +€0.00 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (German)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (French)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (Italian)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (Spanish)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (German)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (French)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Italian)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Spanish)
[ +€168.16 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +€0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€24.14 ]
Extended Warranty for 6 Months
[ +€48.28 ]
Extended Warranty for 12 Months
[ +€115.86 ]
Extended Warranty for 24 Months
[ +€193.10 ]
Extended Warranty for 36 Months
[ +€289.65 ]

Comment

Specifications
Category
Attribute
Value
Dimensions (W x H x D)
Dimensions (W x H x D)
315 x 190 x 100 mm
(12.4" x 7.48" x 3.9")
HDD Expansion
HDD Expansion
2 x 2.5" SATA HDD bay
Environment
Environment
Operating Temp:
0 ~ 50°C
Humidity:
95% @ 40° C (non-condensing)
Vibration w/ CF: 5 Grms
Vibration w/ 2.5" HDD: 1 Grms
Shock w/ CF: 50 G, half sine, 11 ms duration
Shock w/ HDD: 20 G, half sine, 11 ms duration
Expansion Slots
Expansion Slots
1 x PCI (default)
1 x PCIe x1 (default)
2 x PCIe x1 (optional)
2 x Mini PCIe
OS (Optional)
OS (Optional)
Windows® XP Pro
Windows® 7
Additional OS options available
System
System
Intel Atom D525 AFC System with PCI/PCIe Slot and 16 COM Ports
VGA
VGA
x2
HDMI
HDMI
None
Processor
Processor
Intel® Atom™ D525 Processor
Chipset
Chipset
Intel® ICH8M
Memory
Memory
1GB or 2GB DDR3 Memory Built-In
HDD
HDD
1 x 2.5" SATA HDD (Optional)
Solid State Disk
Solid State Disk
CompactFlash Slot I/II
CRT
CRT
VGA connector
LVDS
LVDS
None
DVI
DVI
None
TV Out
TV Out
None
Audio
Audio
Dual output 2.2 W amplifier
Line-in
Speaker-ou
tMic-in
Ethernet
Ethernet
2 x 10/100/1000Base-T Gigabit Ethernet
I/O Ports
I/O Ports
8 x USB 2.0
16 x RS-232/422/485
1 x 12-ch GPIO
2 x VGA
1 x Speaker-out
1 x Mic-In
Power Supply
Power Supply
Power Consumption: Typical 38W, Max: 52.6W
Input Voltage: 9 VDC ~ 34 VDC
