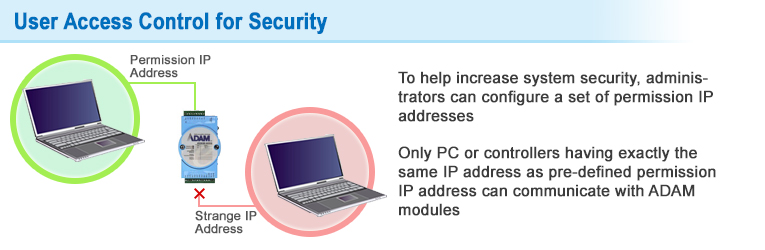

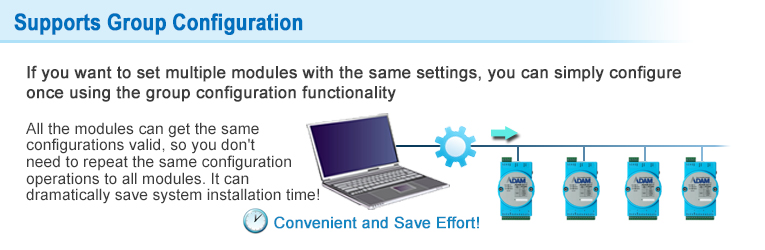

| Communication |
| Ethernet Ports |
1 (10/100 Base-TX) |

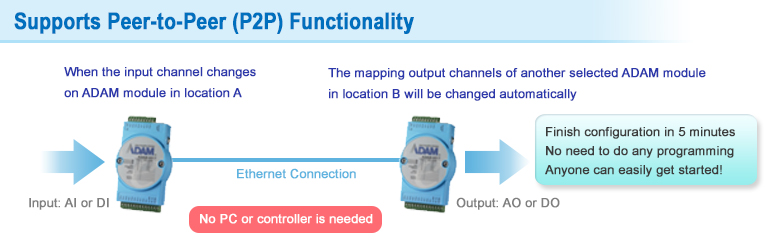

| Peer-to-Peer Function |
Supported |

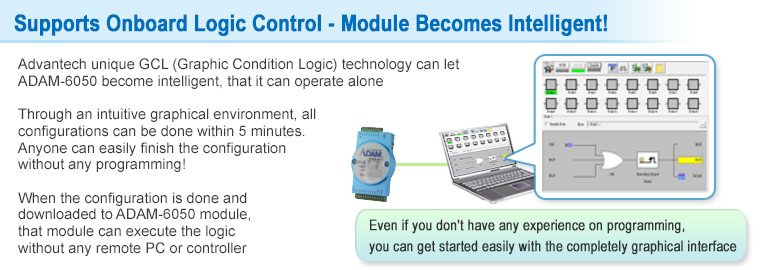

| Graphic Control Logic (GCL) Function |
Supported |

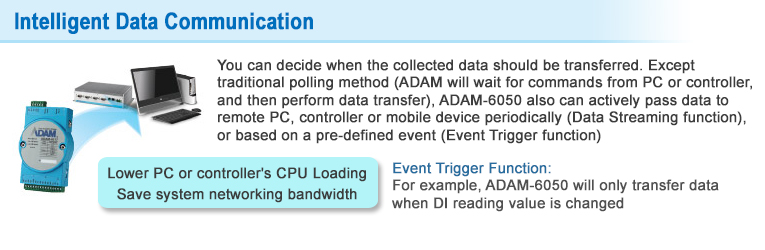

| Actively Data Transfer Function |
Supported |
| Supported Protocol |

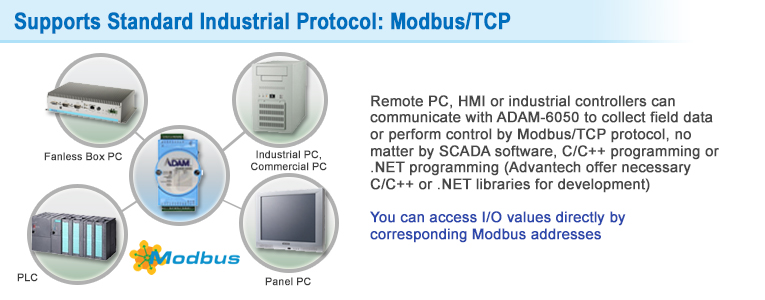

Modbus/TPC, TPC/IP, UDP, HTTP, DHCP |

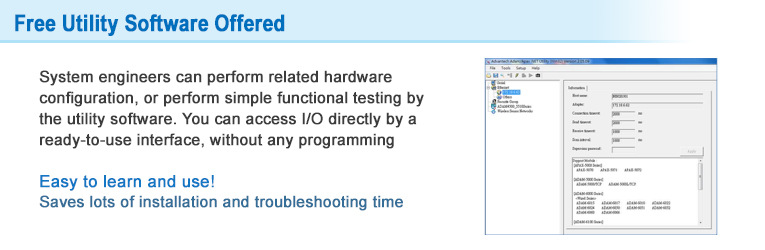

| Software |

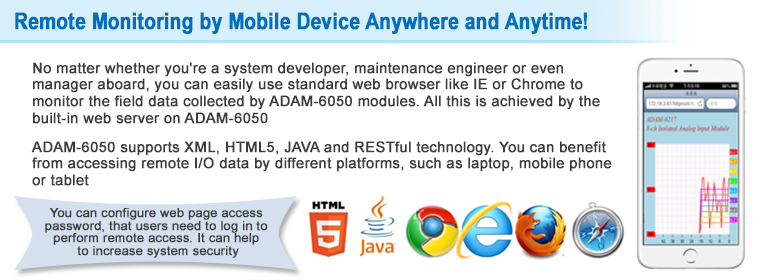

| Supported Web Language |
XML, HTML 5, Java Script |
| Supported Programming Language |
VB and C# |
| OPC Server Software |
Supported |
| Watchdog Function |
System (1.6 second), Communication (programmable) |
| Digital Input |
| Channels |
12 |
| LED Display for Digital Input Status |
Supported |
| Input Level |
Dry Contact:
Logic level 0: close to GND
Logic level 1: open
Wet Contact:
Logic level 0: 0 - 3 V
Logic level 1: 10 - 30 V |
| Counter Input Function |
Event Counting, Frequency Measurement |
| Counter Resolution |
32-bit + 1-bit overflow |
| Counter Input Frequency |
0.2 Hz ~ 3 KHz |
| Counter Function: Keeps the Count Value |
Supported |
| Inverted DI Status |
Supported |
| Digital Output |
| Channels |
6 (Sink) |
| LED Display for Digital Output Status |
Supported |
| Output Range |
Up to 30 V (maximum 100 mA load) |

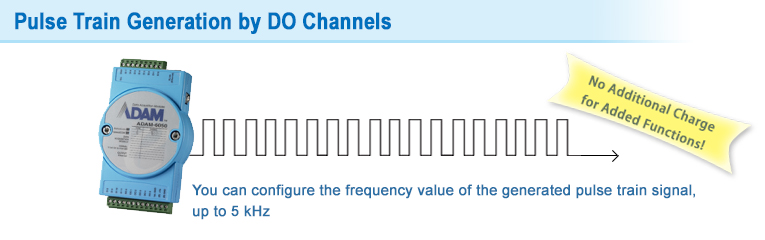

| Pulse Output |
Supported (Frequency up to 5 kHz) |
| Delay Output |
High-to-Low Delay 及 Low-to-High Delay |
| Environment |
| Connector |
9P Terminal Block x 1, 13P Terminal Block x 1 (Screw Locking) |
| Power Input |
10 - 30 VDC |
| LED Display for Power On Status |
Supported |
| Power Consumption |
2 Watt @ 24 VDC |
| Dimension |
70 x 122 x 27 mm |

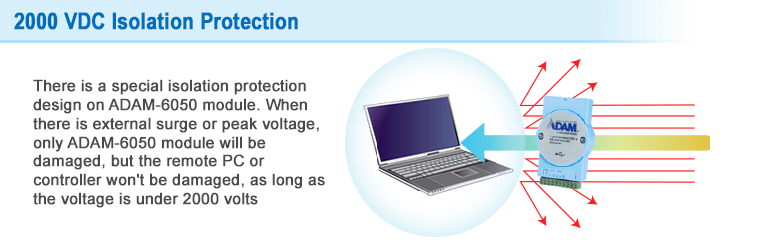

| Isolation Protection |
2000 VDC |
| Power Reversal |
Supported |
| Mounting |
Wall mount, Din-Rail mount, Stack mount |
| Operating Temperature |
-20 ~ 70°C (-4 ~ 158°F) |
| Storage Temperature |
-30 ~ 80°C (-22 ~ 176°F) |
| Operating Humidity |
20 ~ 95% RH (non-condensing) |
| Storage Humidity |
0 ~ 95% RH (non-condensing) |
