Home Peripherals & Modules Embedded Peripherals MI/O Extension Modules

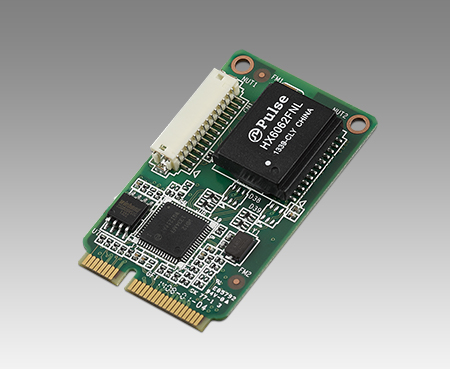

EMIO-100E-MP01E GigaLAN ethernet module, 1-Ch, PCIe I/F

GigaLAN ethernet module, 1-Ch, PCIe I/F
  • GigaLAN ethernet module, 1-Ch, PCIe I/F
  • GigaLAN ethernet module, 1-Ch, PCIe I/F
  • GigaLAN ethernet module, 1-Ch, PCIe I/F
  • GigaLAN ethernet module, 1-Ch, PCIe I/F

  1. 1-Ch PCIe to GigaLAN ethernet module
  2. Support full duplex operation at 10/100/1000 Mb/s
  3. Full size MiniPCIe type. Compliant with PCI Express TM 2.1
  4. Compliant with 1Gb/s IEEE 802.3, 802.3u, 802.3ab
  5. Wide temperature from -40 to +85 degree
Resources
Resources Download
DatasheetDownloadDriverExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info
2 years extended warranty
Request Quantity Discount
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Embedded I/O Modules
According to
Compliant with the 1Gb/s IEEE802.3,802.3u,802.3ab
Embedded I/O Modules
Channel Connector
1
Embedded I/O Modules
Communication Interface
PCIe
Embedded I/O Modules
Dimensions (L*W*H)
50.95 x 30 x 15 mm
Embedded I/O Modules
Interface Connector
MiniPCIe thru PCIe
Embedded I/O Modules
LED Status
Reserve the LED signal for external usage
Embedded I/O Modules
MTBF
15,200,000 hours
Embedded I/O Modules
Operating Temperature
-40 ~ +85°C
Embedded I/O Modules
Protocol
GigaLAN Ethernet
Embedded I/O Modules
Storage Temperature
-40 ~ +85°C
Embedded I/O Modules
Supported Voltage and Current
+3.3V, 100mA
Embedded I/O Modules
Type
PCIe to 1-Ch GigaLAN Ethernet port
