iDoor Module Mini PCIe Expansion Kit

Advantech's iDoor Expansion Module is a brand-new design concept which utilizes the Mini PCIe card. iDoor modules include: communication, fieldbus protocol and digital I/O. The highly flexible customization and easy assembly provide integrated solutions to meet different needs.
Results per page 91872 | Sort by Price Highest / Lowest
Page 1 of 1
MOS-1110Y-0101E
Isolated 16 DI / 8 DO, 1-Ch, DB37, PCIe I/F
  1. Meets Advantech Standard iDoor Technology
  2. PCI Express® Mini Card Specification Revision 1.2 compliant
  3. Supports wide-input/output voltage (10-30 VDC/5-30 VDC)
  4. High over-voltage-protection (70 VDC) and voltage isolation (2,500 VDC)
  5. Easy configuration & efficient programming by Advantech DAQNavi
  6. I/O address automatically assigned by PCIe plug & play
  7. Keeps the output settings and values after system hot reset
  8. Supports ARK-2121L and ARK-6322

€146.00

Compare More

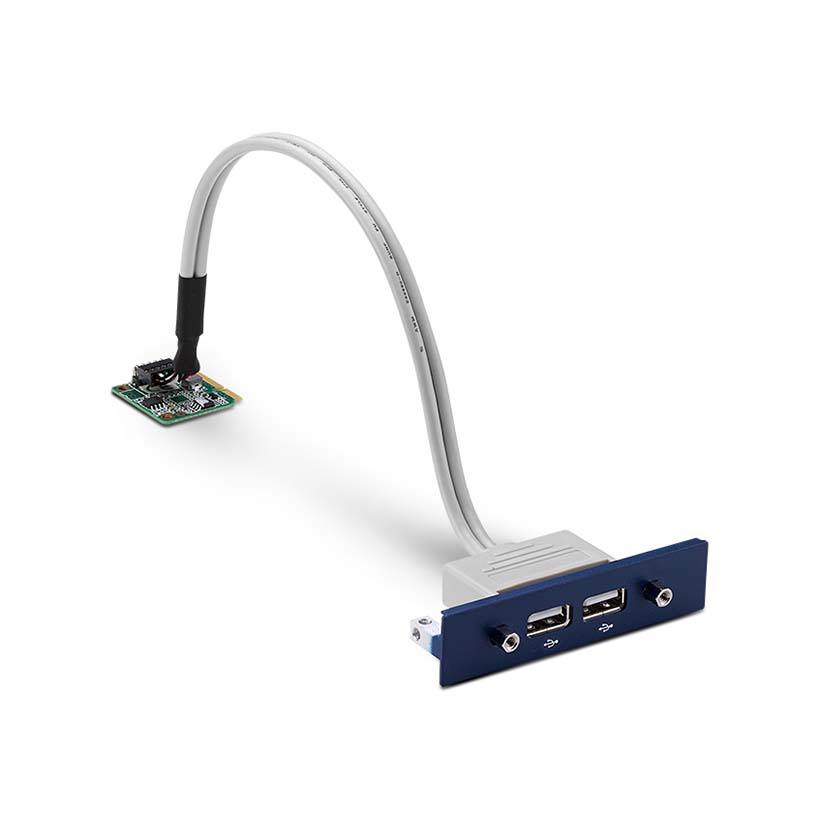

MOS-2110Z-1201E
USB module, 2-Ch, PCIe I/F
  1. 2-Ch USB 2.0 Hi-Speed ports
  2. Half size MiniPCIe type compliant with PCI Express TM 2.0
  3. Compliant with xHCI specification
  4. Support USB 2.0 and USB 1.1 devices

€43.00

Compare More
MOS-2120-Z1101E
Advantech Giga LAN Ethernet iDoor Module
  1. PCIe to 1x Ch PCIe to GigaLAN ethernet module
  2. Support full duplex operation at 10/100/1000 Mb/s
  3. Full size MiniPCIe type. Compliant with PCI Express TM 2.1
  4. Compliant with 1Gb/s IEEE 802.3, 802.3u, 802.3ab
  5. Wide temperature from -40 to +85 degree

€52.00

Compare More
MOS-2220-X1101E
Parallel Port LPT iDoor Module
  1. USB to 1x Parallel port module
  2. Full size Mini PCIe & Module type combo
  3. MiniPCIe thru USB & USB Pin Header
  4. Support IEEE 1284-compliant ECP

€41.40

Compare More
MOS-2220-Z1101E
High Speed Serial COM iDoor Module
  1. USB to 1x High Speed Serial COM port module
  2. Full size Mini PCIe & Module type combo
  3. Support High Speed RS232/ RS422/ RS485 port

€76.00

Compare More
MOS-2230-Z1201E
CANBus iDoor Module
  1. USB to 2x CANBus port module with isolated
  2. Full size Mini PCIe & Module type combo
  3. Combo USB (Internal/ External) Interface
  4. Compliant with CAN 2.0A and CAN 2.0B identifiers, According to ISO 11898-1 and ISO 11898-2
  5. Bit rates up to 1 Mbit/s

€123.00

Compare More
